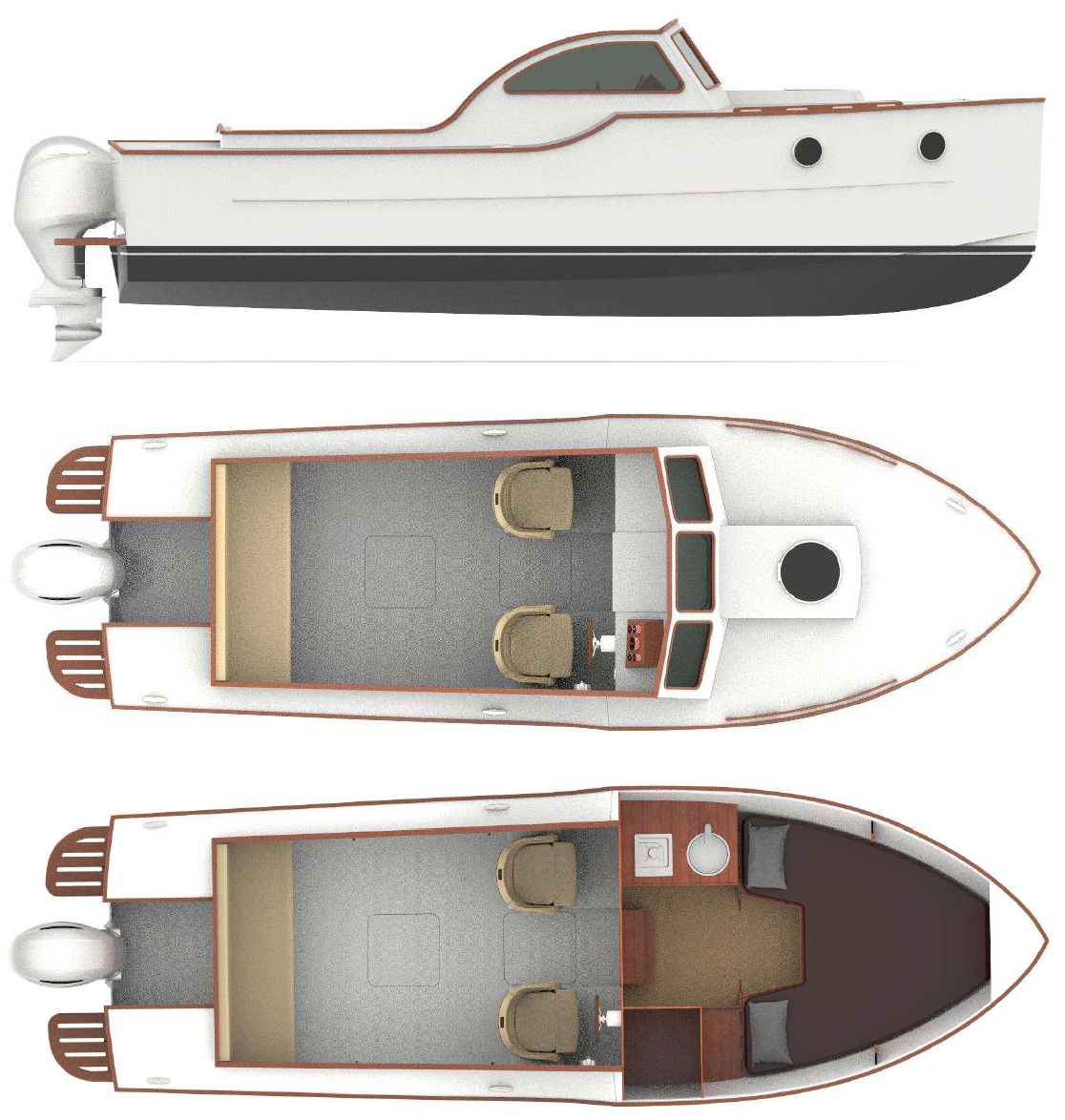

PF 240
This 24 ft motor boat has been specially designed for amateur boat builders using a plywood/epoxy construction method. The design ensures a sea kindly performance, good speed and seaworthiness.

Construction:
PFYD provides a comprehensive set of construction plans, as well as precision CNC/CAD files that allow for the accurate cutting of every member of the boat. The CNC files are optimized for use with standard plywood sheets of 2400 x 1200 mm, and each panel features a puzzle joint and slots for quick and accurate assembly.

Specifications:
Hull Length: 7.20 m
Hull Beam: 2.42 m
Hull Draft: 0.38 m
Displacement: 2340 kg
Engine: 1 x 150HP Outboard
Fuel Capacity: 215 lts
Max. Speed: 20 kts

This boat is an excellent choice for those looking for a high-performance vessel that is easy to build and perfect for weekend cruising or fishing.
